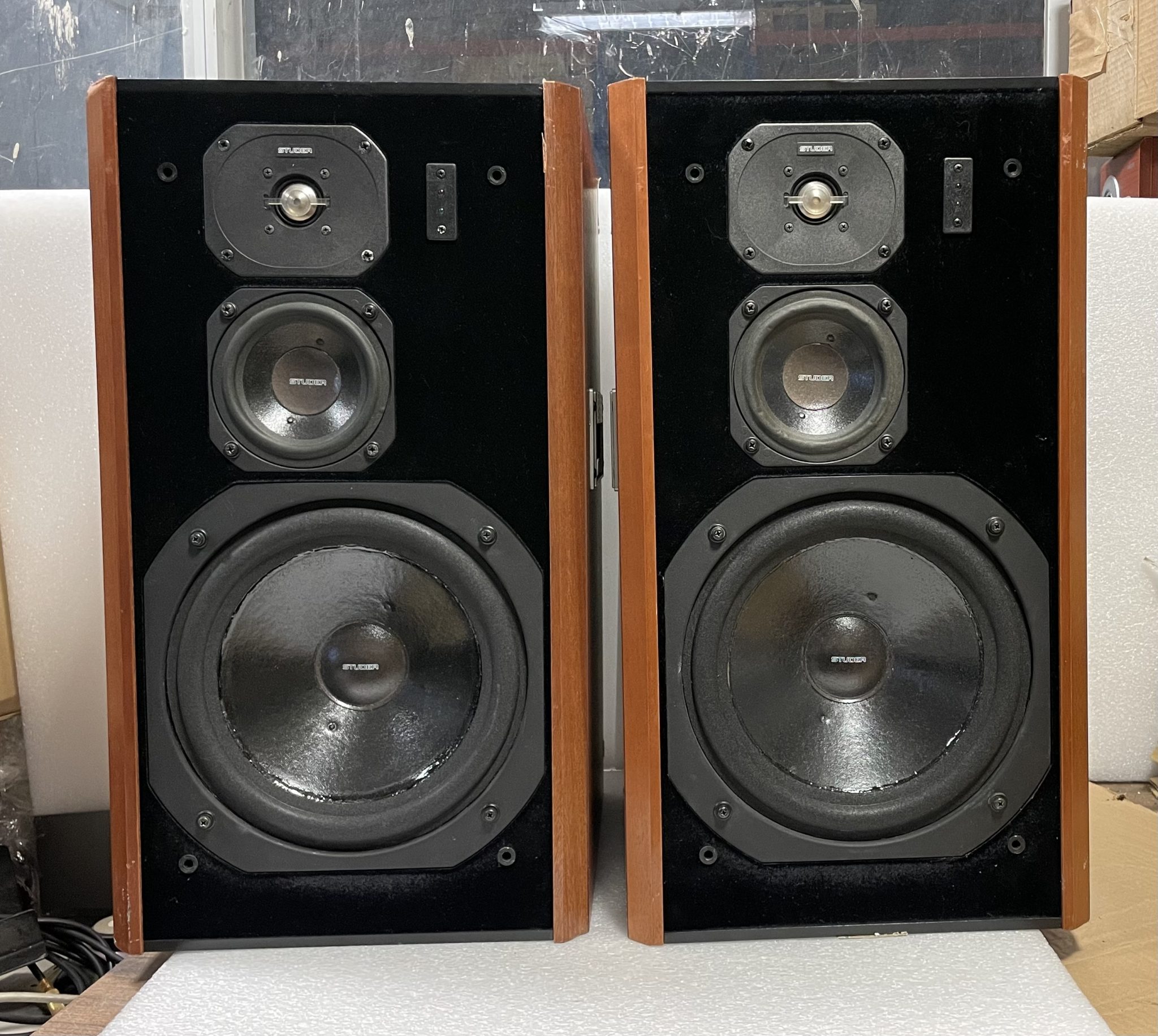

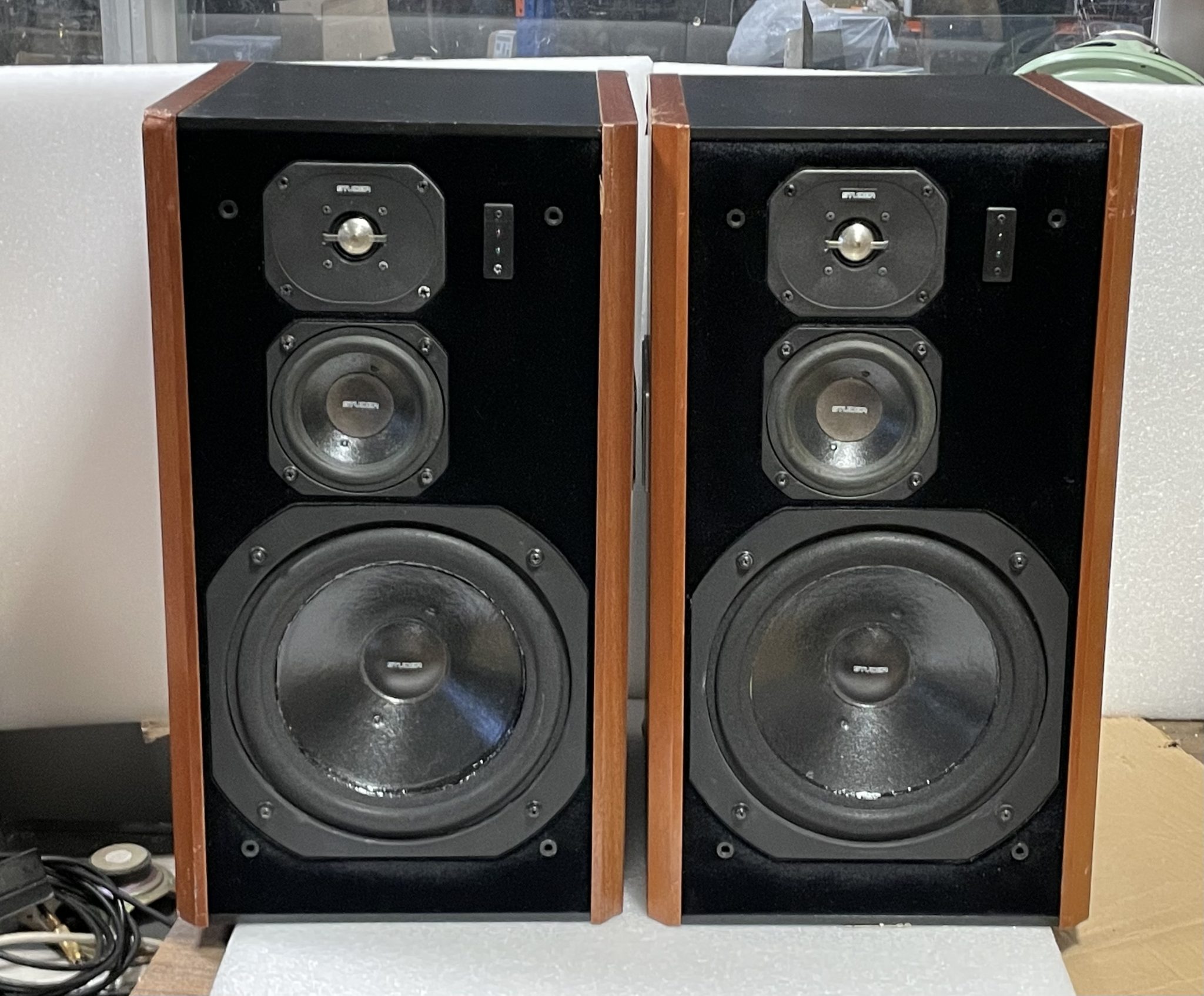

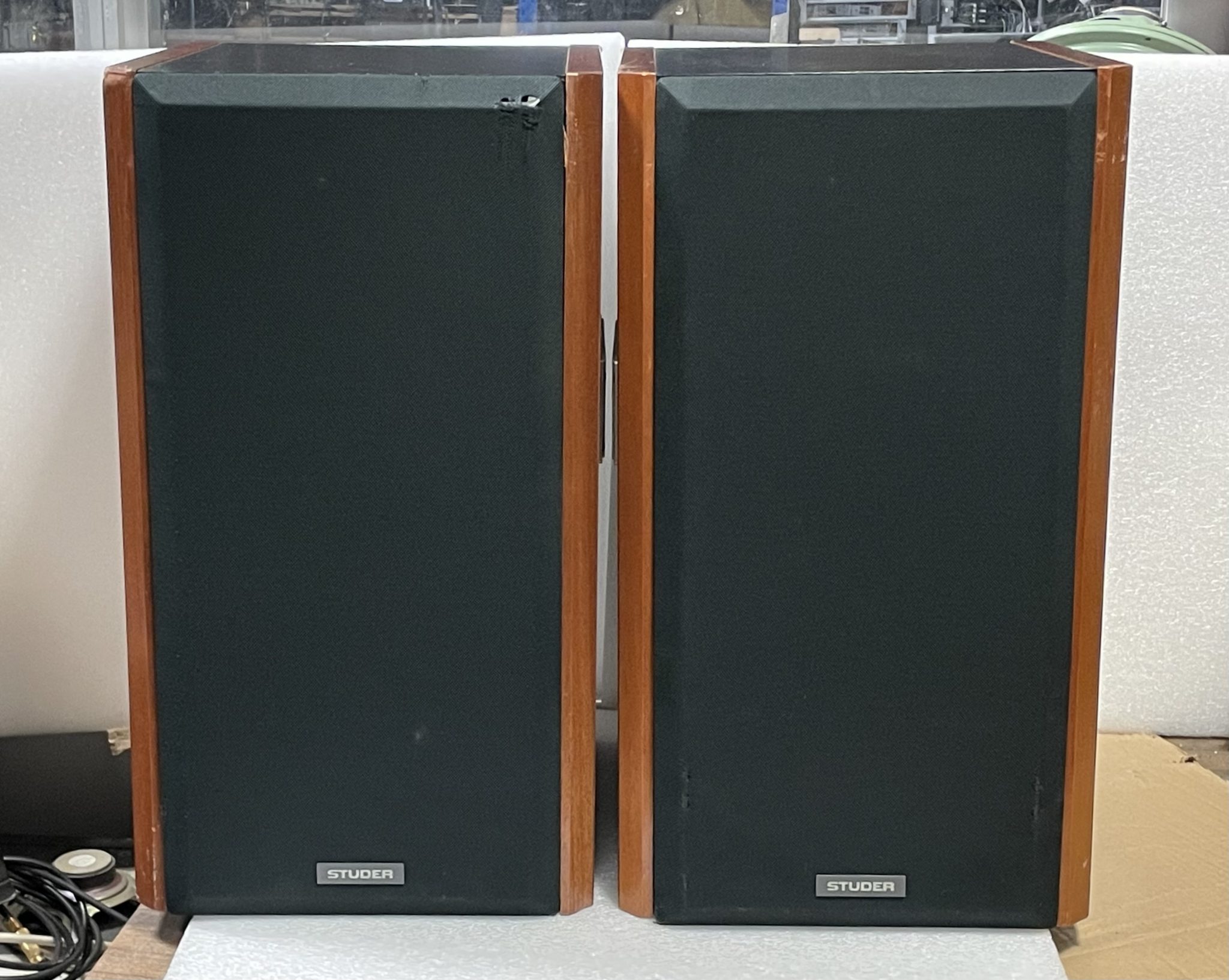

Studer A723 Active three-way transducer
Description
Active three-way transducer for high-quality requirements. For monitoring and critical evaluation of important voice and music recordings in small and medium-sized monitoring rooms and broadcast vehicles. The acoustic propagation times of the systems are balanced via analogue propagation time chains, the crossovers are electronically constructed and group propagation time compensated.
Three built-in 100 W amplifiers with negative output impedance suppress cabinet vibrations and reflections. Control is via studio level. It is possible to compensate for installation-related frequency response deviations in the bass range.
Sound pressure: (1 m, 1 kHz with 100 Hz wobble) 106 db SPL
Number of systems: 3
Frequency response: +/- 2db: 80Hz – 16kHz
– 3db: 40Hz – 20kHz
Weight: 32 kg
